Lathe

Now Available...

Turning a thread manually takes time; even then, results can be mismatched in quality. CNC gives us predictable results but equipment can be costly. Syil has heard the call and has answered back with the C6B CNC lathe. Full threading capability with indexed spindle and smooth double nut ball screws give this lathe the attractiveness of a CNC lathe but because it is from Syil, without the expense. Compound curves, custom threading, and automated tasks become simple with full CNC control and wizards that provide conversational convenience to any home shop or business.

Features:
•10" swing
•20" gap
•Fully indexed spindle
•Double nut ball screws
•Travel X,Z (4.33",19.9")
•125-2000 rpm
•5" 3 jaw chuck
•MT3 spindle
•MT2 Tail
•450 lbs
•Nema 23 motor / X axis
•Nema 34 motor / Z axis
•Mounts, ball screw mounts, and bearing blocks are made of steel, by wire EDM. More rigidity than for more precision
•Industrial grade switches are installed on every axis for limit/home functions
•Customizable drivers that are unmatched in their category


Specifications:

X Travel	4.33"
Z Travel	19.9"
Drilling Capacity	1"
Min Spindle Speed (RPM)	60
Max Spindle Speed (RPM	2500
Weight (lbs)	425
Spindle Type	MT3
Motor Size (hp)	1
Spindle Control	Yes
Flood Coolant Ready	No
Homing Switched	Yes
Computer Included	No
Accuracy	0.0005"
Repeatability	0.0004"
Rapid Traverse Speeds	60 ipm
Screw type	Ball Screw
Backlash Compensation	Double

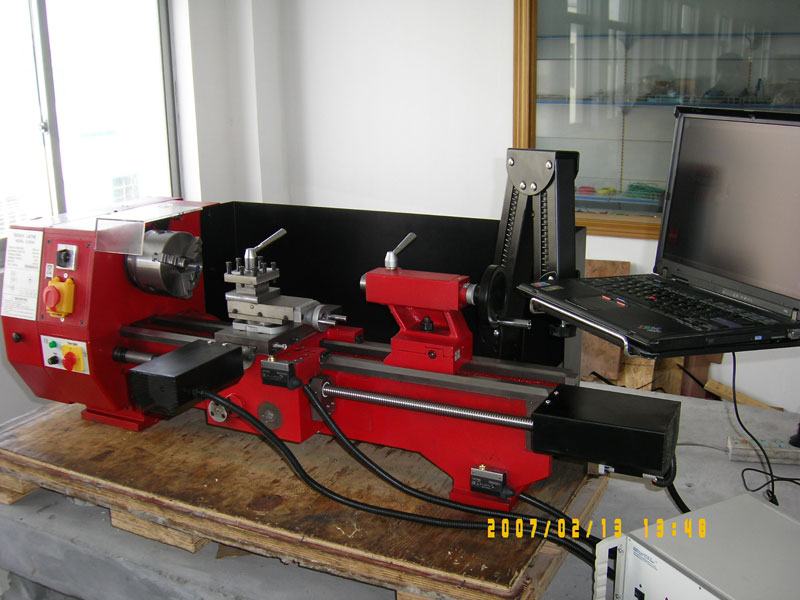

*Pls note - Laptop pictured not included.

The following postcodes would be charged extra: IV, KW1-14, PA34, PA37-39, PH19-40, PH41 Sector 4 & PH49-50. Please contact us for further information.

*Please note that the images and specifications stated may only be used as a guide. Actual products may vary.
