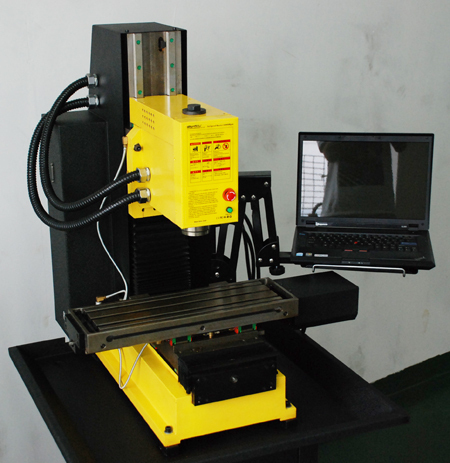

The list of features, all in the price, is impressive - 3 axis linear rails, 4th axis included with rotary table and tailstock, 24,000rpm spindle speed, one shot manual lubrication system and more.
Features:
522 X 160mm Size of table
-24000rpm/min high-speed
-water-cooled spindle
-Equipped with 220V single-phase AC VFD
-220V single-phase AC power supply
-1 x 120mm pre-installed
-high-speed cooling fan
-high quality casting materials
-compact structure
-OEM PMI double nut ballscrews
-Hiwin precision linear guideways
-safety of high-quality electrical
-components and fast plug
-manual lubrication system pre-installed
-to protect the rail life
-pre-installed fourth axis interface
-pre-installed dual-cooling system
-machine stands
-pre-installed computer arm
-CE and CCC safety certification
Specifications:
Overall Dimensions(L x W x H) - 920mm x 790mm x 950mm
Packing Dimensions(L x W x H) - 950mm x 840mm x 1150mm
Table size - 522mm x 160mm
T Slot Dimensions - 12mm
Weight - 350~450kg
Axis travel:
- X axis: 280mm
- Y axis: 160mm
- Z axis: 270mm
Spindle speed - 8000~24000rpm
Spindle drive power - 0.75kW
Input voltage - 220v/240v/120v AC
Repeatability - =0.01mm
Cutter dia - 2~6mm
Motor torque:
- X axis motor: 3.5Nm
- Y axis motor: 3.5Nm
- Z axis motor: 3.5Nm
Ballscrews - double nut ballscrews P5 class PMI OEM
Linear guideway - HIWIN OEM high precision linear
Output - standard 25pin parallel port
*Please note that the computer, stand and coolant system are available extra accessories and not included in the basic price.
The following postcodes would be charged extra: IV, KW1-14, PA34, PA37-39, PH19-40, PH41 Sector 4 & PH49-50. Please contact us for further information.
*Please note that the images and specifications stated may only be used as a guide. Actual products may vary.
