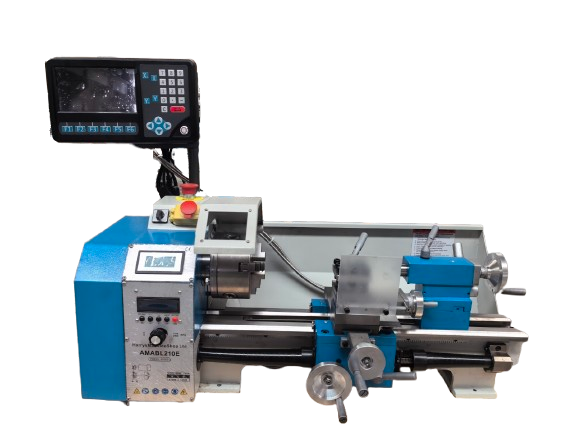

AMABL210E VARIABLE SPEED LATHE - 2 Axis DRO - 38mm SPINDLE BORE & (ELS) ELECTRONIC CHANGE GEAR SYSTEM

£1,695.00

Total Price:

Ask a question

Email a friend

Quantity:

Product Description

Available for pre-order; shipping is expected in April.

AMABL210E VARIABLE SPEED LATHE - 2 Axis DRO - 38mm SPINDLE BORE & ELECTRONIC CHANGE GEAR SYSTEM

1. Big spindle bore 38mm.
2. Powerful 1100W brushelss motor.
3. Variable -speed spindle with high/low speed ranges.
4. V-ways bed is hardened and precision ground.
5. Spindle is supported by precision taper roller bearings.
6. Adjustable gibs for slideways.
7. Convenient quick-lock tailstock.
8. Tailstock can be offset for taper turning.
9. WBL210E uses an electronic change gear system, eliminating the trouble of replacing the change gears.
10. WBL210E can achieve one -click settings of the threading pitch and processing length and automatically cut the thread.
11. WBL210E has reverse feed for cutting left-hand threads.
12. 2 Axis DRO Fitted
SPECIFICATION:

Capacities:
Swing over bed: 210mm
Swing over cross slide: 110mm
Distance between centres: 400mm
Width of bed: 100mm

Headstock:
Hole through spindle: 38mm
Taper in spindle nose: MT5
Number of spindle speeds: Variable
Range of spindle speeds: 50-2250RPM

Feeding and Threading:
Range of metric threads 0.10-5.0mm
Range of inch threads 6-96 T.P.I
Range of longitudinal feeds 0.1-0.4mm

Compound and carriage:
Tool post type: 4-way
Maximum compound slide travel: 55mm
Maximum cross slide travel: 75mm
Maximum carriage travel: 276mm

Tailstock:
Tailstock spindle travel: 60mm
Taper in tailstock spindle: MT2

MAIN MOTOR: 1.1KW, 220V/1Ph/50hz

DIMENSION:-
Length:820mm
Width: 390mm
Height: 370mm
Weight: 65Kg

STANDARD ACCESSORIES: INCLUDED

3-Jaw chuck (125mm)
High and low variable spindle speed ranges
Digital display of speed range
Chip tray
Splash guard
Switch-off chuck cover
Toolbox & tools
