VM25H R8 with Belt Drive & Brushless Motor - HIGH SPEED - 100-4000 rpm

VM25H R8 with Belt Drive & Brushless Motor - HIGH SPEED - 100-4000 rpm
VM25H R8 with Belt Drive & Brushless Motor - HIGH SPEED - 100-4000 rpm - view 1VM25H R8 with Belt Drive & Brushless Motor - HIGH SPEED - 100-4000 rpm - view 2VM25H R8 with Belt Drive & Brushless Motor - HIGH SPEED - 100-4000 rpm - view 3VM25H R8 with Belt Drive & Brushless Motor - HIGH SPEED - 100-4000 rpm - view 4VM25H R8 with Belt Drive & Brushless Motor - HIGH SPEED - 100-4000 rpm - view 5

£1,588.00

Click for larger image

 Ask a question
 Email a friend
Additional items you may need

Product Description
Available for pre-order; shipping is expected in April.

**NEW HIGH SPEED - 100-4000 rpm, Belt drive & Brushless Motor**

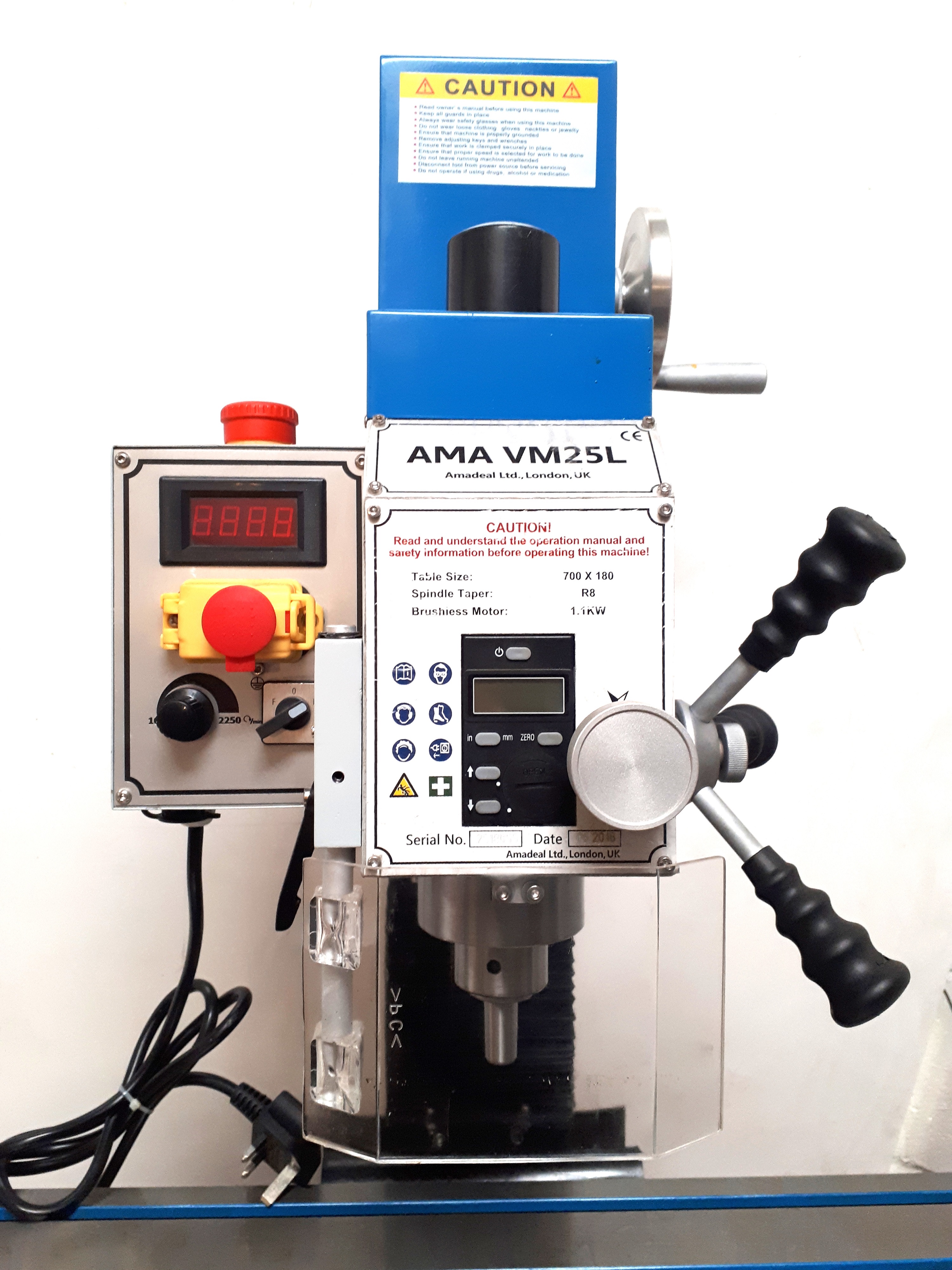

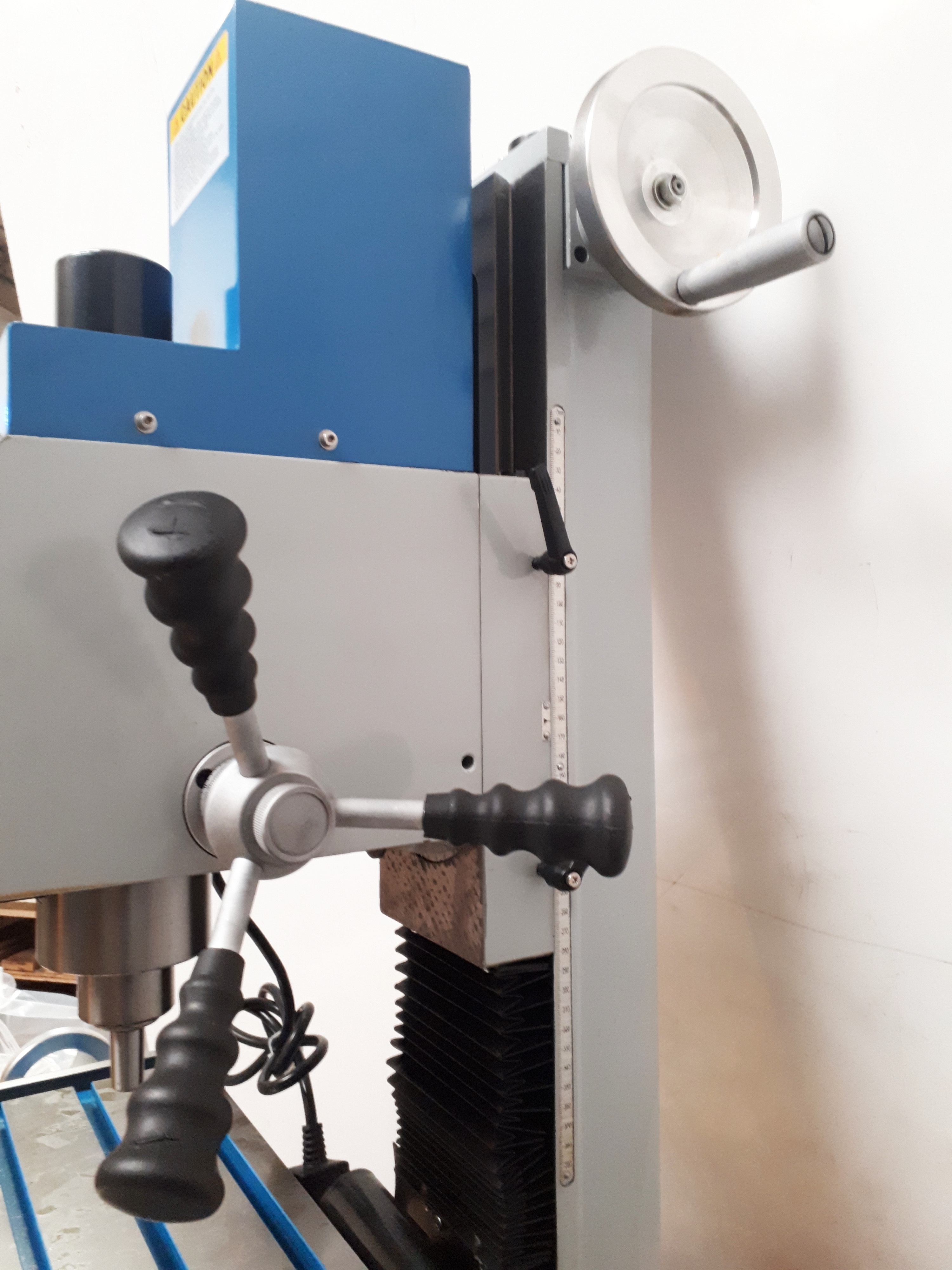

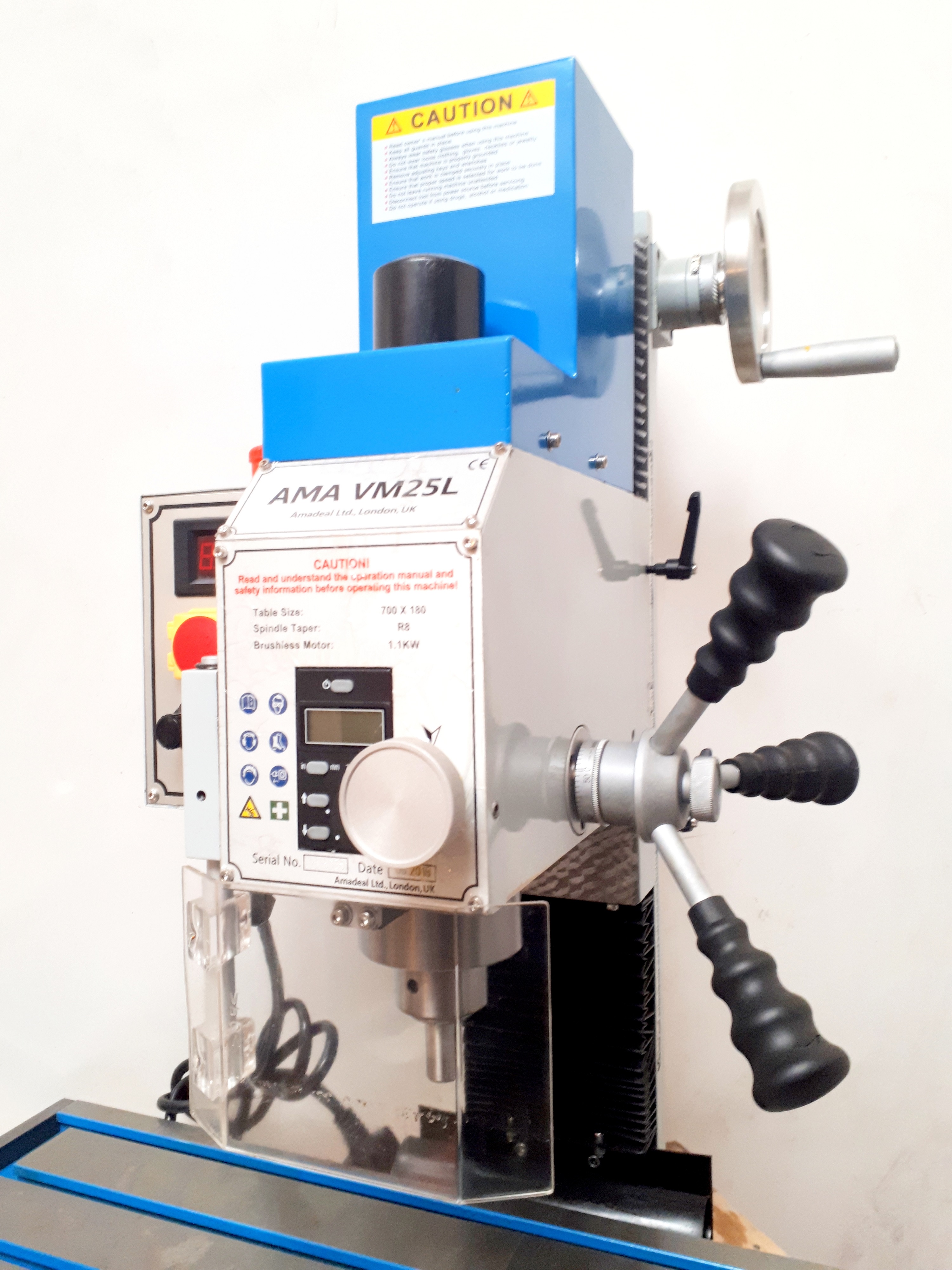

Amadeal VM25H R8 with Belt Drive & Brushless Motor - HIGH SPEED - 100-4000 rpm

+++ Why buy from anywhere else when you can have these at a lower price from the same manufacturer at exactly the same specifications, build and quality. +++

Absolutely brand new and unused. Direct from manufacturer and fully guaranteed. Available now and ideal for the professional engineer or amateur model maker alike.

A full range of spares for this machine is available and plenty of accessories are stocked.


FEATURES:
Compact, accurate, economical vertical drilling/milling machine.
1.1kW Brushless Motor.
Variable speed enables simple operation.
Spindle is supported by high precision taper roller bearing.
Mill head may be tilted ±90°.
Precision manual fine down feed.
Adjustable taper gibs.
Positive locks for table ,head, quill,column.
Easy reading scale has satin chrome finish.
Bigger table provides greater capacity.
Dovetail column.
Easy to raise and lower head by handwheel.
Tolerance test certificate and test flow chart included.

SPECIFICATION:
Model No: HM25L (R8)
Max. drilling capacity: 20mm
Max. end milling capacity: 16mm
Max. face milling capacity: 63mm

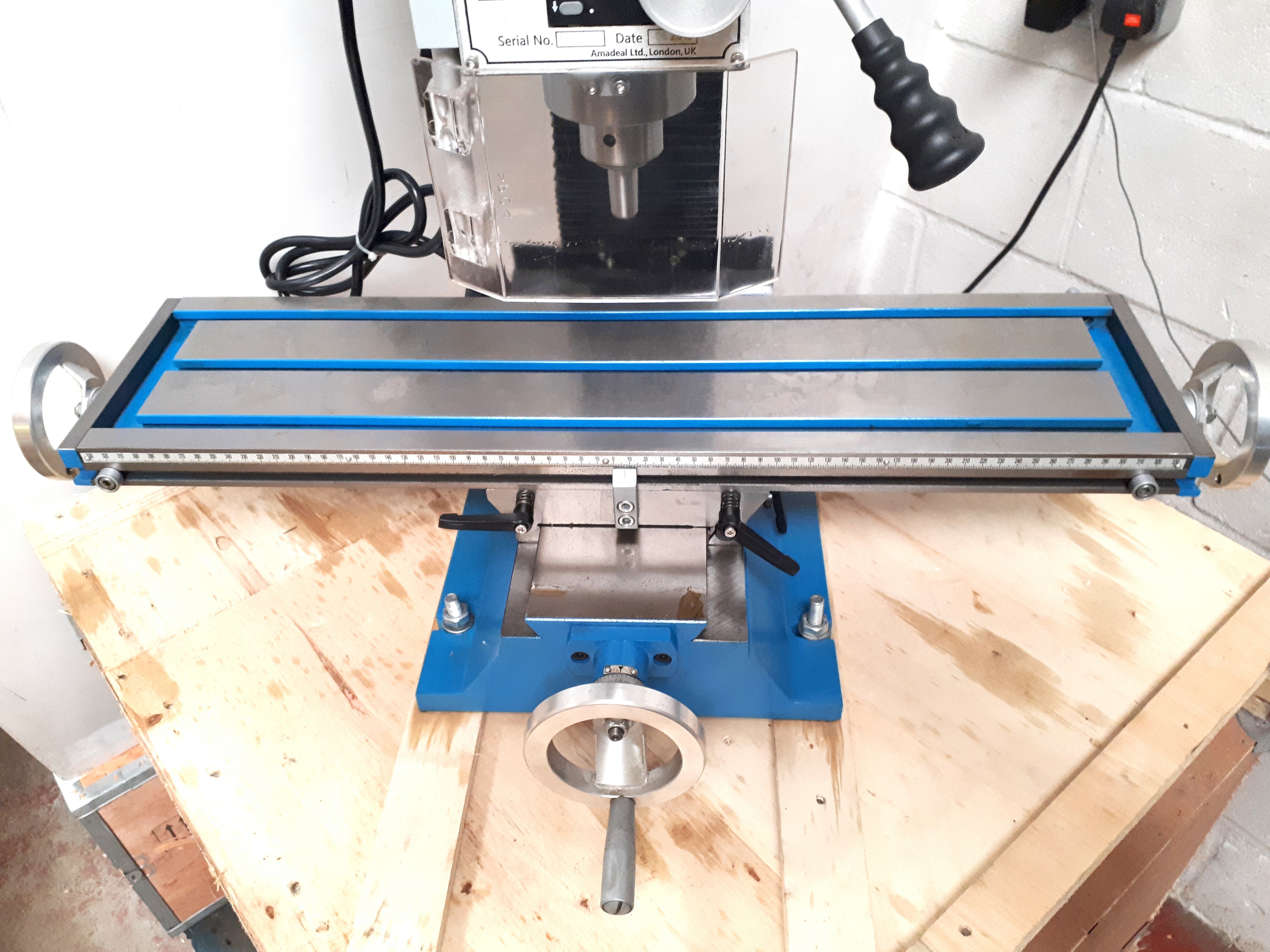

Table size: 700×180mm
T-slot size : 12mm
Cross travel: 175mm
Longitudinal travel: 480mm
Vertical travel: 275mm
Distance from spindle nose to table: 320 mm
Distance from spindle to the column :160mm
Maximum Height of machine: 940mm/37inches
Taper of spindle bore: R8
Spindle stroke: 50mm
Range of spindle speeds: 100-4000 rpm
Headstock tilt left & right: ±90°
Motor: 1.1kW
Packaging size :710mmx760mmx930mm
Overall dimensions of machine: 670 x 550 x860mm
Net weight/Gross weight: 120kg/140kg

STANDARD ACCESSORIES
Drill chuck
Arbor
Drawbar
Toolbox & tools
Digital depth ruler
Speed counter
