Headstock Assembly for CJ18 Series - METAL GEAR

Total Price: (Including VAT at 20%)

Click for larger image

Ask a question

Email a friend

Additional items you may need

Spindle size

Quantity:

Product Description

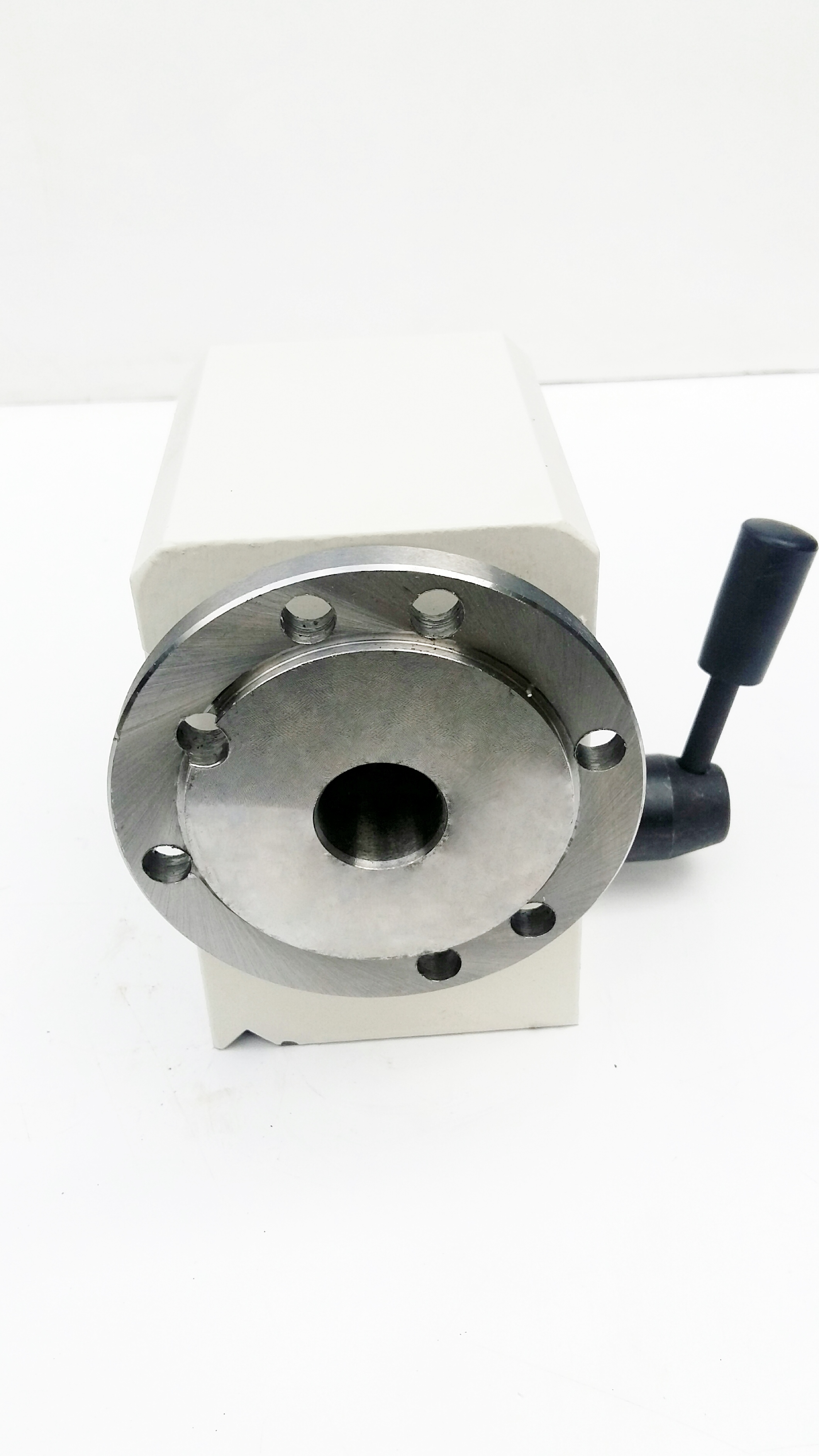

This is the headstock assembly for a 7x12 or 7x14 mini lathe with metal gears inside.

It includes the 4" spindle and all the pieces in the headstock casting, the High/Low shifter, all parts on the spindle, and all parts on the intermediate shaft, except the pulley.
