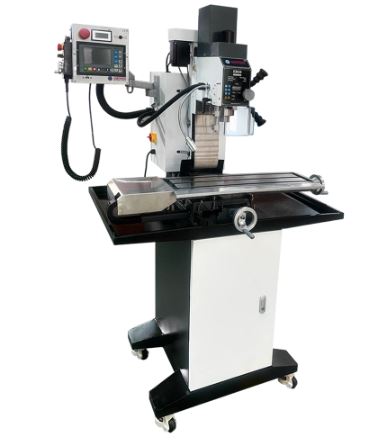

EM28 ELECTRONIC MILLING MACHINE

EM28 ELECTRONIC MILLING MACHINE

NEW MACHINE COMING SOON CALL OR EMAIL TO ENQUIRE ON THIS AMAZING NEW MACHINE.

Product Description
Features

1· All axes with ball screws
2· Servo drive on all axes (X, Y and Z axis)

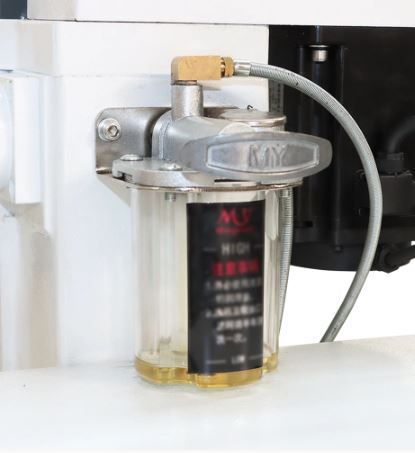

3· Manual central lubrication for all guide ways
4· Swivelling control panel

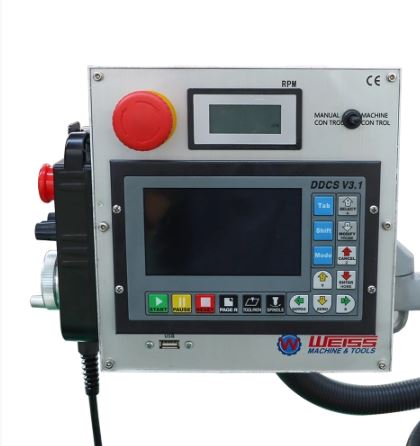

5· DDCS V3.1 3/4 axis departure controller
6· 5 inches inch TFT screen, resolution: 480x272,17 operation keys
7· The 17 -key can complete the common off -control operation, and support the FANUC compatibility of the G instruction set with strong universality.
8· Support U disk to read G instructions, G instruction file size is not required;
9· Support standard MPG;
10· Support the single -axis manual movement and continuous operation of the single -axis of the panel;
11· The hand wheel and the extension keyboard can control and operate the controller;
12· Especially quiet running
13· Stable dovetail guide, precision ground and scraped with adjustable wedges
14· Manual spindle fine feed
15· Drilling and milling head can be swiveled by ± 90°
16· Super heavy-duty stand with multi-function wheel, can be adjust height and fix as machine pad(Optional)

Specifications

Metric (mm)
Max. drilling capacity 25mm
Max. end milling capacity 16mm
Max. face milling capacity 63mm
Table size 700x180mm
Cross travel 145mm
Longitudinal travel 480mm
Vertical travel 230mm
Taper of spindle bore MT3/R8
Spindle stroke 50mm
T-slot 3x12mm
Step of spindle speeds Variable
Range of spindle speeds 100-2500rpm
X-Aixs continuous operation 6 N.m
Y-Aixs continuous operation 8 N.m
Z-Aixs continuous operation 8 N.m
X-Aixs 4000mm/min
Y-Aixs 4000mm/min
Z-Aixs 4000mm/min
Heads tilt left & right ±90º
Distance from spindle to column 160mm
Distance from spindle nose to table 290mm
Motor 1100W
Dimensions 850x680x770mm
Packing size: 880x710x900mm
Net Weight: 128kg


STANDARD ACCESSORIES: INCLUDED
DDCS V3.1 3/4 axis departure controller YES
Swivelling control panel YES
Electronic handwheel YES
3 Axis ball screws and servo motor YES
Drill chuck 1-16mm YES
Drill chuck arbor YES
Drawbar YES
Digital display of speed range YES
Digital spindle stroke indication YES
Protect cover for spindle YES
Manual central lubrication YES
Tool box & tools YES
